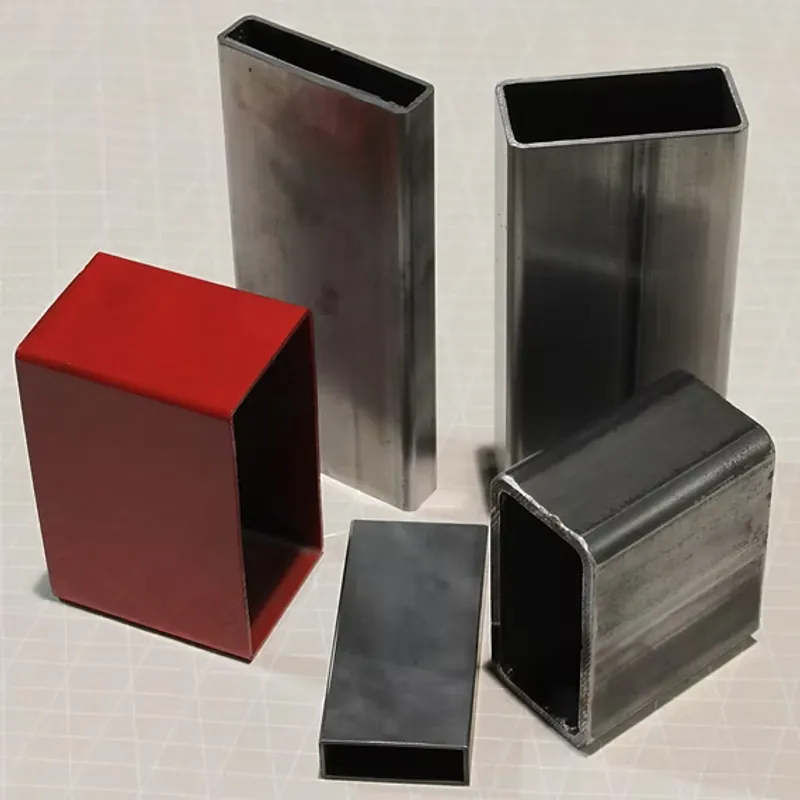

Rectangular Mechanical Tubing
Material Grade 1008/1010, 1022, 1023, 1026, 1030, 1035, High Strength Low Alloy (HSLA)
Profile Geometry Rectangular
Classification Definition
"Rectangular Mechanical Tubing is a welded steel tube used where greater strength is required in one direction. It provides a flat surface for mounting and is efficient for joining and fabrication."
Rectangular Tubing from Vanex Tube is engineered for versatility. Whether for load-bearing frames or architectural elements, our tubing meets strict dimensional specificatons.
Value-Added Capabilities
- I.D. Flash Scarfing: Vanex utilizes I.D. scarfing for removal of the I.D. Flash, which is more precise than I.D. Rolling. This also enables us to provide an I.D. Undercut condition, if so desired.
Standard Configurations
Compliance: ASTM A513| Gauge Profile | Technical Decimal (in) | Production Matrix (OD/Dimensions) |
|---|---|---|
| 16 | 0.065" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
|
| 15 | 0.072" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
|
| 14 | 0.083" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
|
| 13 | 0.095" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 12 | 0.109" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 11 | 0.120" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 10 | 0.134" | 1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 9 | 0.148" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 8 | 0.165" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 7 | 0.180" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 6 | 0.203" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 5 | 0.220" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 4 | 0.238" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
| 3 | 0.250" | 1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
|
Gauge 16
Wall Thickness 0.065"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
Gauge 15
Wall Thickness 0.072"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
Gauge 14
Wall Thickness 0.083"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
Gauge 13
Wall Thickness 0.095"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 12
Wall Thickness 0.109"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 11
Wall Thickness 0.120"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 10
Wall Thickness 0.134"
Available Matrix (OD)
1.00x2.50"
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 9
Wall Thickness 0.148"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 8
Wall Thickness 0.165"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 7
Wall Thickness 0.180"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 6
Wall Thickness 0.203"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 5
Wall Thickness 0.220"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 4
Wall Thickness 0.238"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
Gauge 3
Wall Thickness 0.250"
Available Matrix (OD)
1.50x2.50"
1.50x3.00"
1.50x3.50"
1.50x4.00"
2.00x3.00"
2.00x3.50"
2.00x4.00"
2.00x5.00"
2.00x5.50"
2.00x6.00"
2.50x3.00"
2.50x3.50"
2.50x4.00"
2.50x5.00"
2.50x6.00"
3.00x4.00"
3.00x4.50"
3.00x5.00"
3.00x6.00"
4.00x5.00"
* Precision rolling protocols applied. Custom lengths and finishes calibrated upon request.
