Specialty & Custom Shapes
Classification Definition

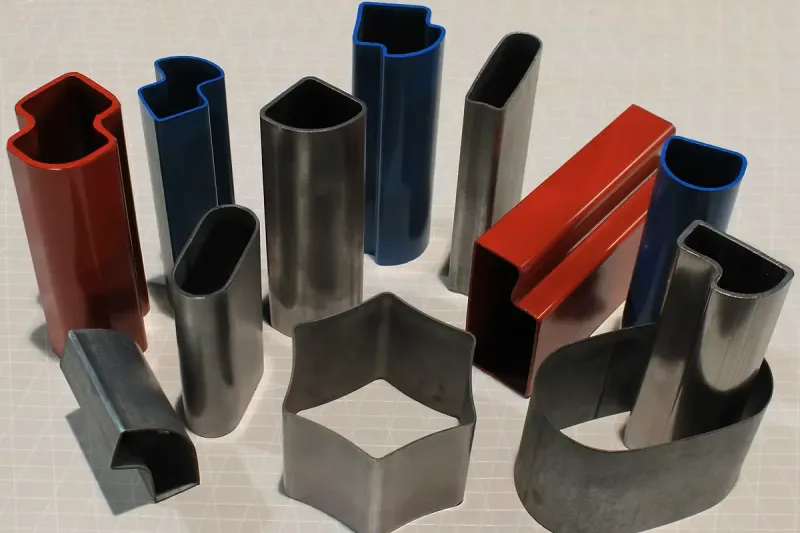

"Specialty Shape Tubing refers to non-standard tubular profiles like D-shapes, ovals, or hexes, produced via custom roll-forming. These shapes are often used for aesthetic distinctiveness or specific mating requirements in assembly."
Beyond standard geometric shapes, Vanex Tube operates advanced roll-forming mills capable of producing Specialty Shapes. Our facilities boast an extensive number of roll stands, allowing us to form highly sophisticated and complex custom shapes that meet your exact specifications. If your application calls for a standard profile instead, we also manufacture square tubing, rectangular tubing, and round tubing to ASTM A-513 from the same Niles, Ohio mill.
If you have a unique profile in mind, our engineering team can design custom tooling to bring your vision to reality.
Note: Custom shapes typically require tooling investment and minimum order quantities. Please contact us with your DWG or PDF drawings for a consultation.
Standard Configurations
Compliance: ASTM A513| Production Matrix (OD/Dimensions) | Available Gauges | Wall Thickness Range |
|---|---|---|
| Custom Profiles View Exact Fractional Sizes D-Shape"
Flat Oval"
Elliptical"
Hexagonal"
Octagonal"
Bread Loaf"
| Custom | Var" |
Exact Fractional Sizes
Technical parameters
- Ornamental Ironwork
- Custom Furniture
- Automotive Trim
- Architectural Details
