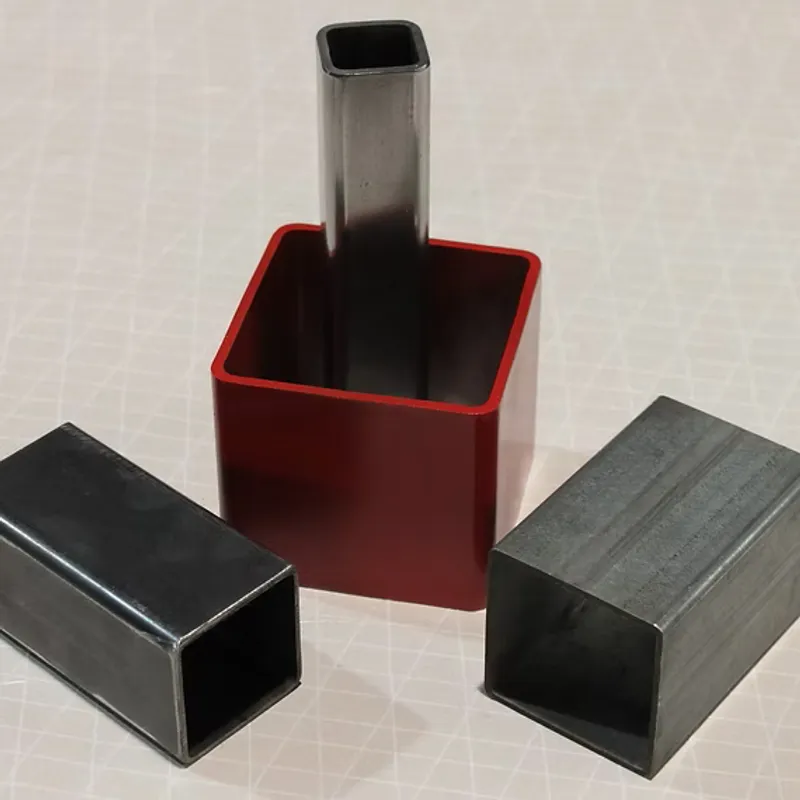

Square Mechanical Tubing
Material Grade 1008/1010, 1018/1020, 1022, 1023, 1026, 1030, 1035, HSLA
Profile Geometry Square
Classification Definition
"Square Mechanical Tubing is a box-section steel tube valued for its strength and ease of fabrication. It is commonly used in construction and equipment manufacturing where multi-axis loading is present."
Our Square Mechanical Tubing offers excellent weldability and formability. The uniform grain structure ensures reliable performance in structural applications.
Fabrication Capabilities
- Squaring: Tight tolerance control
- Corner Radii: Controlled for aesthetic and functional needs
- I.D. Flash Scarfing: Vanex utilizes I.D. scarfing for removal of the I.D. Flash, which is more precise than I.D. Rolling. This also enables us to provide an I.D. Undercut condition, if so desired.
Standard Configurations
Compliance: ASTM A513| Gauge Profile | Technical Decimal (in) | Production Matrix (OD/Dimensions) |
|---|---|---|
| 16 | 0.065" | 1.625"
2.000"
2.500"
3.000"
|
| 15 | 0.072" | 1.625"
2.000"
2.500"
3.000"
|
| 14 | 0.083" | 1.625"
2.000"
2.500"
3.000"
|
| 13 | 0.095" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 12 | 0.109" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 11 | 0.120" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 10 | 0.134" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 9 | 0.148" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 8 | 0.165" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 7 | 0.180" | 1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 6 | 0.203" | 2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
|
| 5 | 0.220" | 2.500"
3.000"
3.500"
4.000"
4.500"
|
| 4 | 0.238" | 3.000"
3.500"
4.000"
4.500"
|
| 3 | 0.250" | 3.000"
3.500"
4.000"
4.500"
|
Gauge 16
Wall Thickness 0.065"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
Gauge 15
Wall Thickness 0.072"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
Gauge 14
Wall Thickness 0.083"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
Gauge 13
Wall Thickness 0.095"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 12
Wall Thickness 0.109"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 11
Wall Thickness 0.120"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 10
Wall Thickness 0.134"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 9
Wall Thickness 0.148"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 8
Wall Thickness 0.165"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 7
Wall Thickness 0.180"
Available Matrix (OD)
1.625"
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 6
Wall Thickness 0.203"
Available Matrix (OD)
2.000"
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 5
Wall Thickness 0.220"
Available Matrix (OD)
2.500"
3.000"
3.500"
4.000"
4.500"
Gauge 4
Wall Thickness 0.238"
Available Matrix (OD)
3.000"
3.500"
4.000"
4.500"
Gauge 3
Wall Thickness 0.250"
Available Matrix (OD)
3.000"
3.500"
4.000"
4.500"
* Precision rolling protocols applied. Custom lengths and finishes calibrated upon request.
