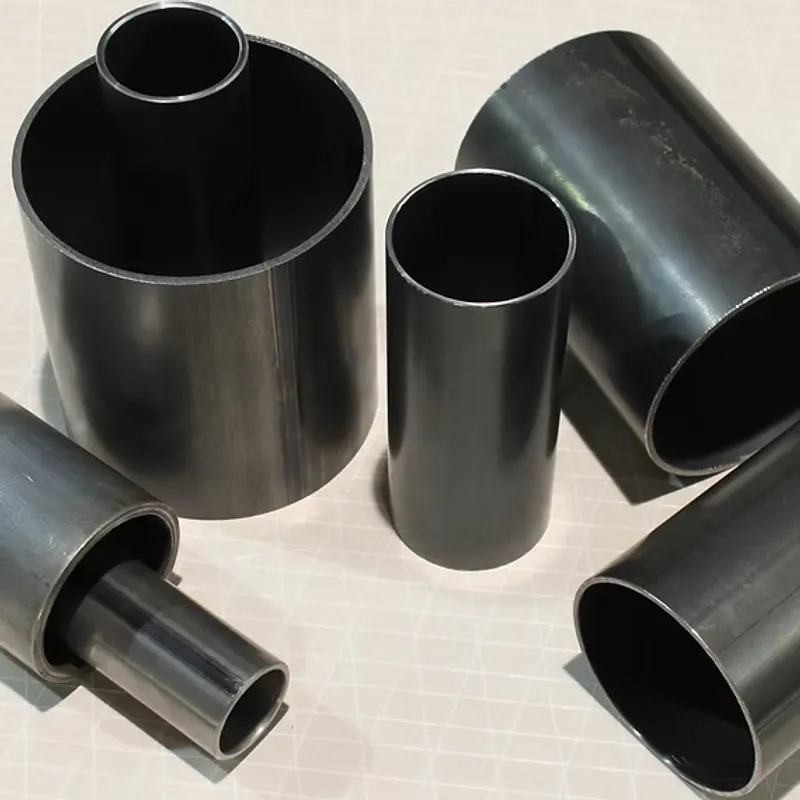

Round Mechanical Tubing
Material Grade 1008/1010, 1018/1020, 1022, 1023, 1026, 1030, 1035, HSLA, AKDQ
Profile Geometry Round
Classification Definition
"Round Mechanical Tubing is a welded steel tube primarily used for structural transport and aesthetic applications. Vanex Tube manufactures round tubing meeting ASTM A513 specifications with tight tolerances for concentricity and straightness."
Vanex Tube produces Round Mechanical Tubing with superior surface finish and structural integrity. Our round tubing is ideal for applications requiring high strength-to-weight ratios and consistent dimensions.
Key Features
- OD Range: 1.875” to 6.000”
- Wall Thickness: 0.065” to 0.313”
- Finishes: Hot Rolled Black, Pickled & Oiled, Galvanized
- Cutting: Precision cutting to length available
Quality Assurance & Additional Capabilities
- Eddy Current Testing: Eddy Current Testing is available as a non-destructive method for identifying surface and sub-surface flaws in the weld seam.
- I.D. Flash Scarfing: Vanex utilizes I.D. scarfing for removal of the I.D. Flash, which is more precise than I.D. Rolling. This also enables us to provide an I.D. Undercut condition, if so desired.
We specialize in custom sizing and just-in-time delivery to keep your production lines moving.
Standard Configurations
Compliance: ASTM A513| Gauge Profile | Technical Decimal (in) | Production Matrix (OD/Dimensions) |
|---|---|---|
| 16 | 0.065" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
|
| 15 | 0.072" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
|
| 14 | 0.083" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
|
| 13 | 0.095" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 12 | 0.109" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 11 | 0.120" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 10 | 0.134" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 9 | 0.148" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 8 | 0.165" | 1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 7 | 0.180" | 2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 6 | 0.203" | 2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 5 | 0.220" | 2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 4 | 0.238" | 2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 3 | 0.250" | 2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 1 | 0.284" | 3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| 1 | 0.300" | 3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
| HVY | 0.313" | 3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
|
Gauge 16
Wall Thickness 0.065"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
Gauge 15
Wall Thickness 0.072"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
Gauge 14
Wall Thickness 0.083"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
Gauge 13
Wall Thickness 0.095"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 12
Wall Thickness 0.109"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 11
Wall Thickness 0.120"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 10
Wall Thickness 0.134"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 9
Wall Thickness 0.148"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 8
Wall Thickness 0.165"
Available Matrix (OD)
1.875"
1.900"
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 7
Wall Thickness 0.180"
Available Matrix (OD)
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 6
Wall Thickness 0.203"
Available Matrix (OD)
2.000"
2.250"
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 5
Wall Thickness 0.220"
Available Matrix (OD)
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 4
Wall Thickness 0.238"
Available Matrix (OD)
2.375"
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 3
Wall Thickness 0.250"
Available Matrix (OD)
2.500"
2.563"
2.625"
2.750"
2.875"
3.000"
3.125"
3.250"
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 1
Wall Thickness 0.284"
Available Matrix (OD)
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge 1
Wall Thickness 0.300"
Available Matrix (OD)
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
Gauge HVY
Wall Thickness 0.313"
Available Matrix (OD)
3.500"
3.750"
4.000"
4.125"
4.250"
4.500"
4.563"
4.750"
5.000"
5.250"
5.375"
5.500"
5.563"
5.750"
6.000"
* Precision rolling protocols applied. Custom lengths and finishes calibrated upon request.
Related Products
Rectangular Rectangular Mechanical Tubing 1008/1010, 1022, 1023, 1026, 1030, 1035, High Strength Low Alloy (HSLA)
View Specs Custom Specialty & Custom Shapes 1022, 1023, 1026, 1030, 1035, HSLA, Various Carbon Steels
View Specs Square Square Mechanical Tubing 1008/1010, 1018/1020, 1022, 1023, 1026, 1030, 1035, HSLA
View Specs
Technical parameters
Material Grade 1008/1010, 1018/1020, 1022, 1023, 1026, 1030, 1035, HSLA, AKDQ
Profile Geometry Round
Certification & Standards
ASTM A513 Type 1ASTM A513 Type 2A787 (Galvanized)
Core Applications
- Conveyor Rollers
- Automotive Components
- Furniture
- Fitness Equipment
